UI Walkthrough

Before we start mucking around in earnest, it's important to understand the Power BI Desktop interface. Knowing where things are at a high level will make everything smoother down the line.

Power BI Desktop is made up of a few key areas:

  • The Ribbon
  • The Report View
  • The Data View (also called the Table View)
  • The Model View

Let's briefly go over each.

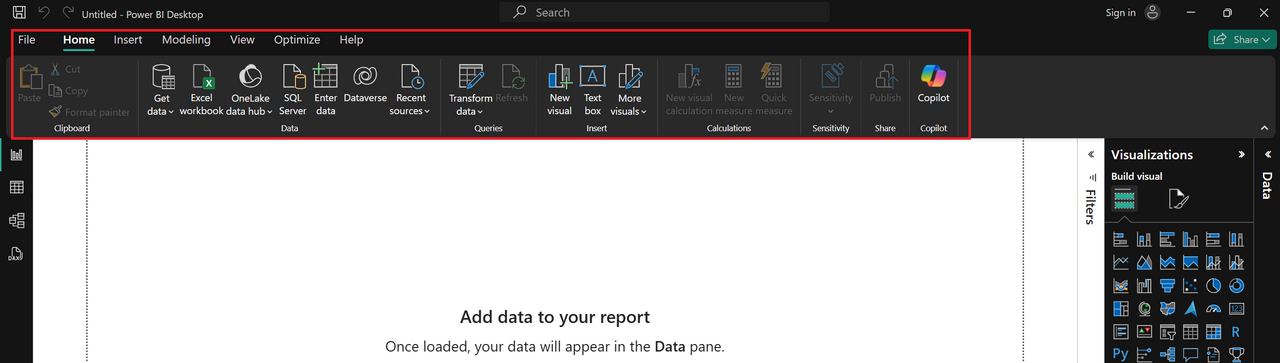

1. The Ribbon

The Ribbon contains most of your primary tools, organized into tabs like Home, Insert, Modeling, and View.

Think of the Ribbon as your main control center – it's where almost every key feature begins.

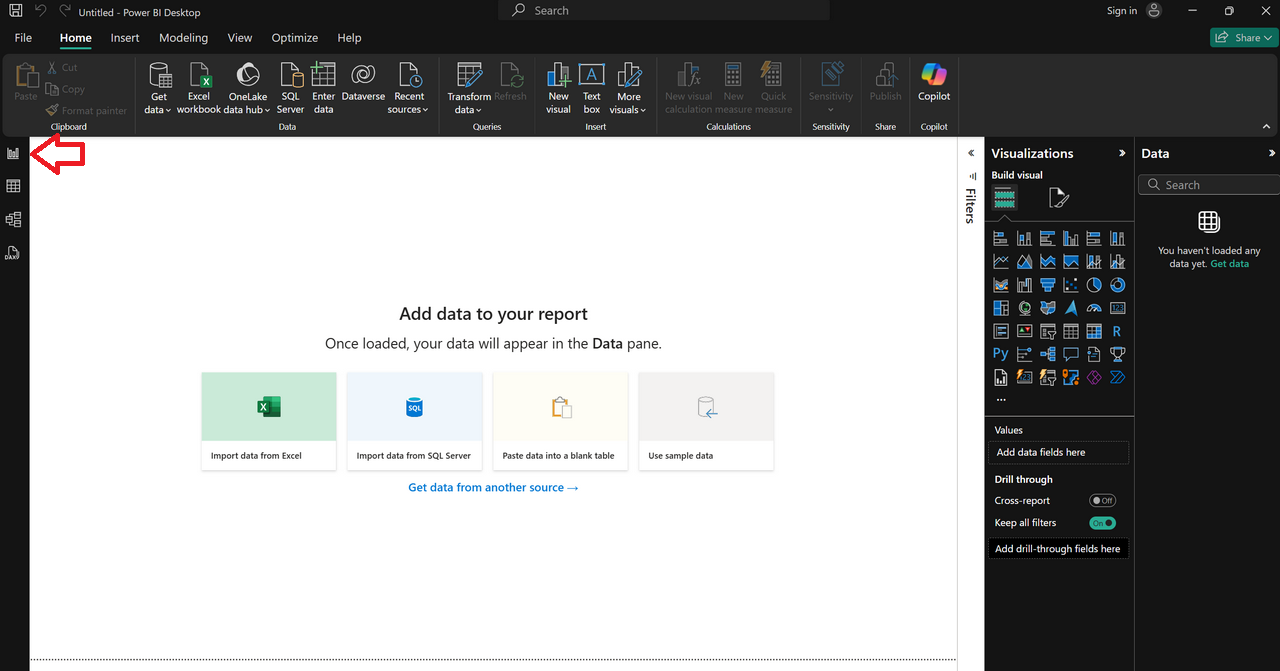

2. The Report View

The Report view is where you'll build and design your visualizations. The large canvas area in the center is where you drag and drop visuals to create a report.

The small icons on the very left-hand side under the Ribbon allow you to switch between views. The top one (with a report icon) is Report view.

This is where the magic happens! You'll spend most of your time here creating charts, visuals, and dashboards.

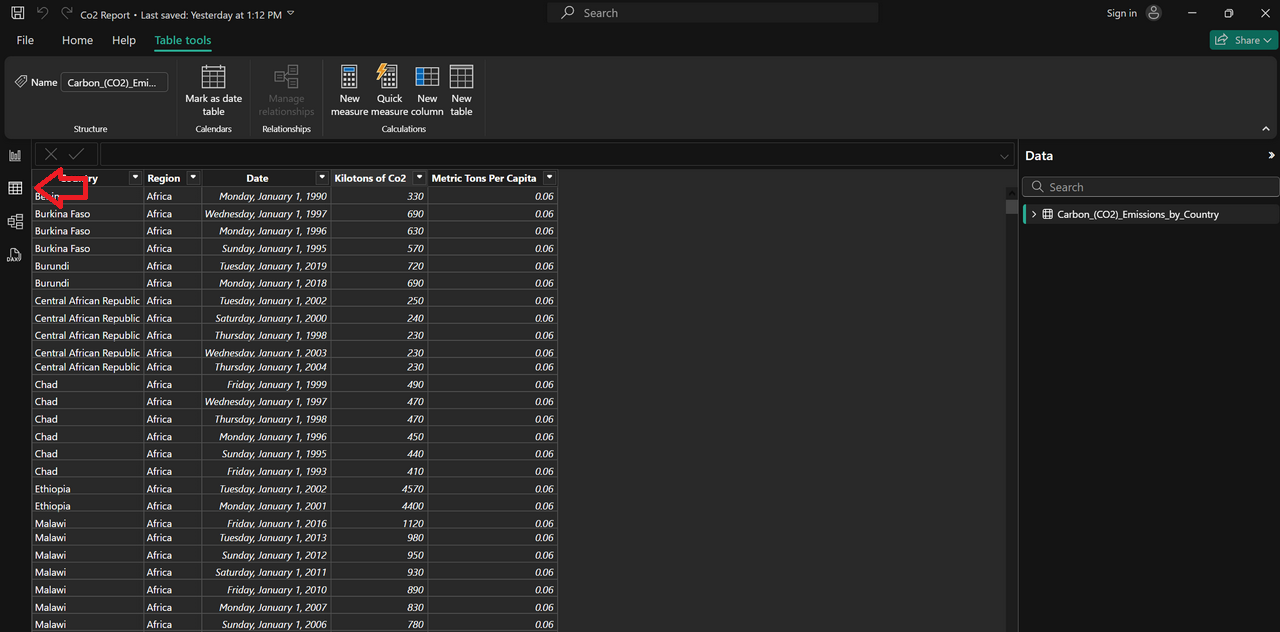

3. The Data View

Directly below the Report view icon is the Data view – or, depending on the version of Power BI, the Table view (two names for the same thing). Here you can look directly at your dataset, similar to a spreadsheet. You can:

  • Inspect rows and columns of your data
  • Verify transformations
  • Rename or reformat fields

This view helps you double-check that your raw data is actually what you expect before you try to visualize it.

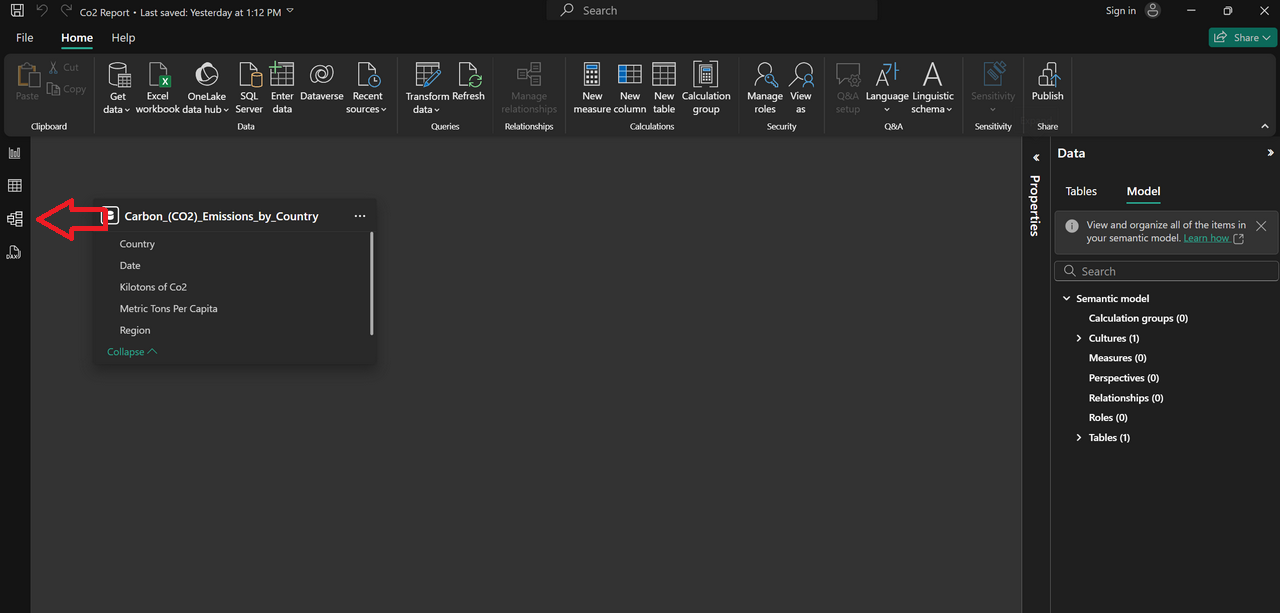

4. The Model View

The bottom icon on the left is Model view, where you manage relationships between tables. You'll see your datasets as boxes connected by lines. Here you can:

  • Create relationships manually
  • Edit existing relationships
  • See how your data models interact

If your visuals aren't displaying correctly, this is one of the first places to check. It's crucial to have all your relationships set up correctly for any multi-table visualization.
